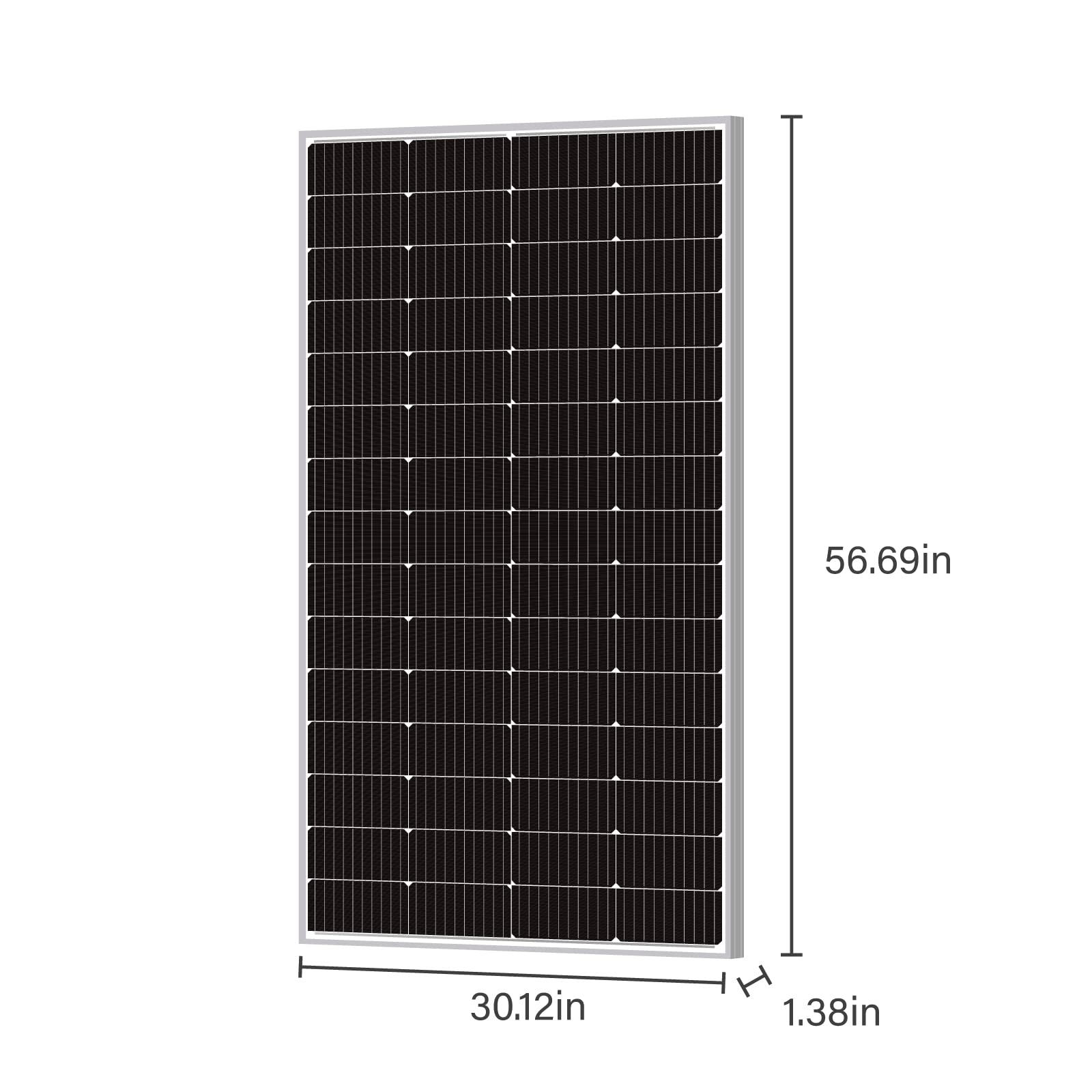

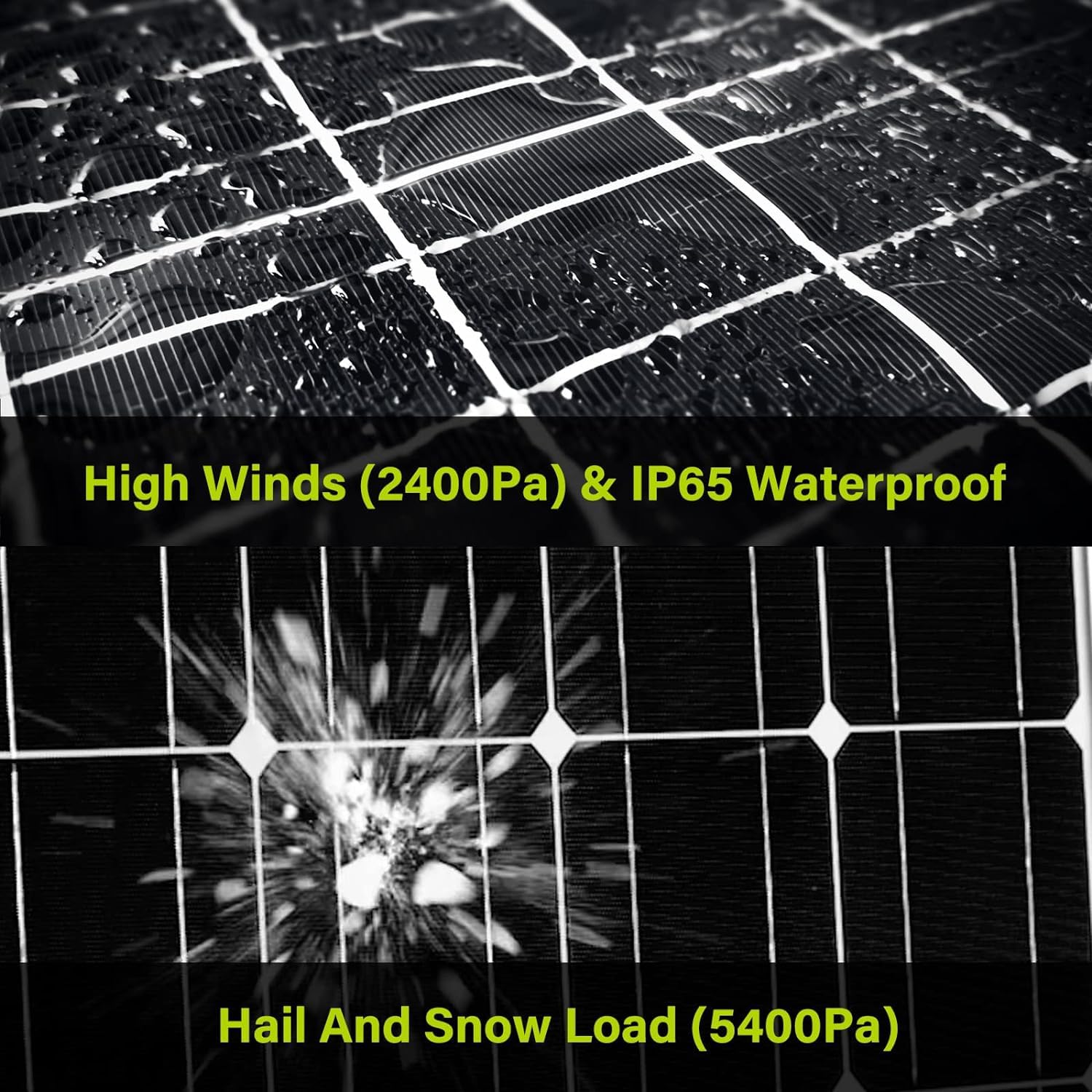

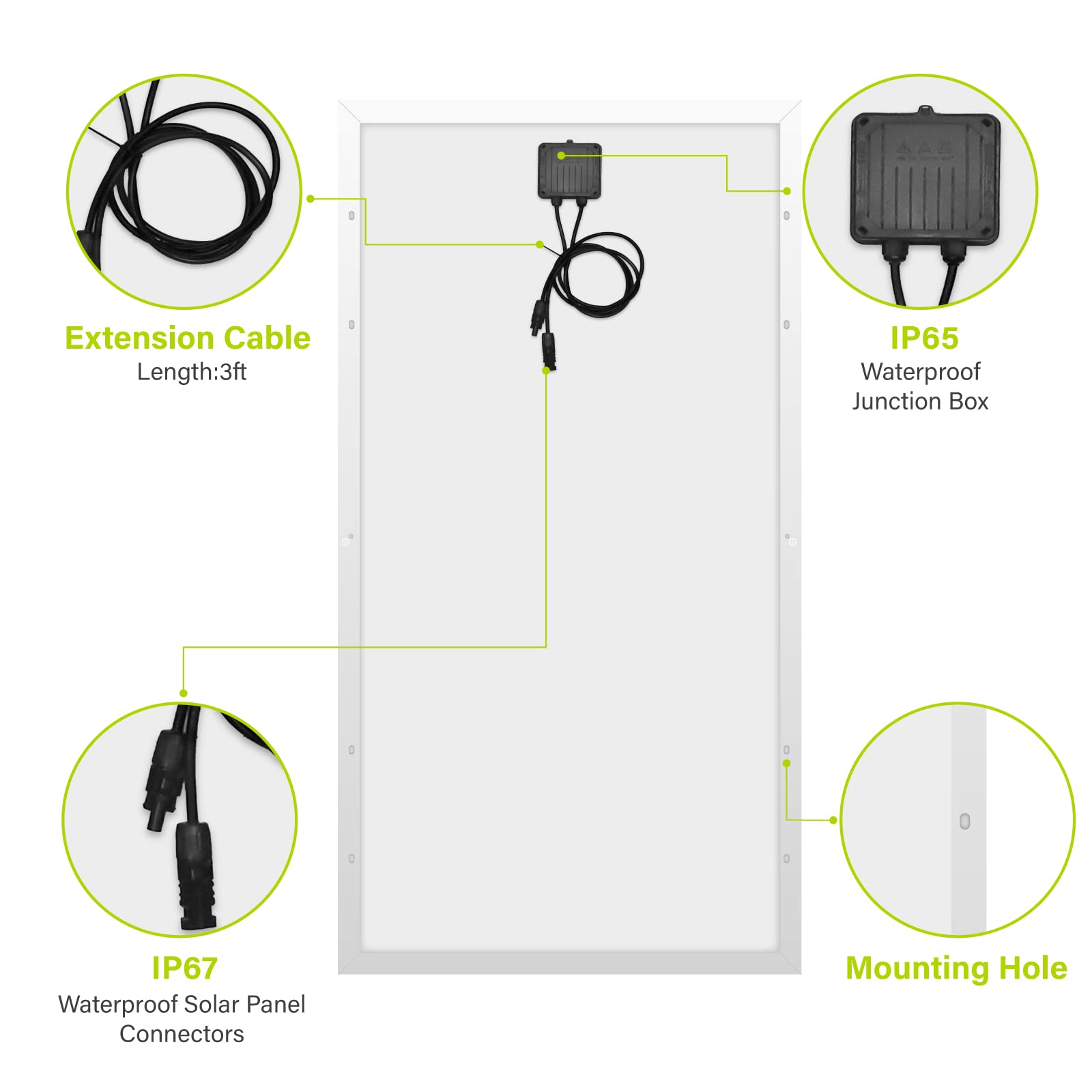

Weather-proof Rugged design to withstand high winds (2400Pa), hail, and snow load (5400Pa)Heavy-duty anodized frame that provides strong protection for the panel structureThe panel and junction box are protected from common weather conditions and water splash (IP65 rating) Versatile Supported by a wide range of mounting options including flat surface, pole, and wall installationCommon applications include RV, camper, SUV, marine, residential rooftop, remote farm, disaster relief, traffic signs, etc. Reliable Heavy-duty anodized frame that provides strong protection for the panel structureMulti-layered sheet laminations enhance cell performance and ensure a long service life. Specifications Dimension: 56.69*30.12*1.38 inchesWeight: 26.62lbsMax Power Output(W): 220WVoltage MPP Vmp(V): 17.52VCurrent MPP Imp(A): 12.60AVoltage Open Circuit Voc(V): 20.52VShort Circuit Current Isc(A): 13.41A 1: Does a Solar Panel produce full power? A: In most cases, it is normal for a solar panel to not be able to provide its full nominal power. Factors affecting the performance of solar panels: Peak Sun Hours， Sunlight Angle， Operating Temperature， Installation Angle， Panel Shading， Adjacent Buildings Etc... 2: How to test a solar panel? A: The ideal conditions: Test in the noon, under a clear sky, panels should be at 25 degrees tilted towards the sun, and the battery is at a low state/less than 40% SOC. Disconnect the solar panel from any other loads, using a multimeter to test the panel's current and voltage. 3: How does temperature affect solar panel efficiency? A: Solar panels are generally tested at about 77°F/25°C and are rated to perform at peak efficiency between 59°F/15°C and 95°F/35°C. Temperature going up or down will change the efficiency of the panels. For example, if the temperature coefficient of power is -0.5%, then the panel maximum power will be reduced by 0.5% for every 50°F/10°C rise. 4: How to install our solar panels using different brackets? A: There are mounting holes on the panel frame for easy installation using a variety of brackets. Most compatible with Newpowa's Z-mount, tilt-adjustable mount, and pole/wall mount, making panel mounting suitable for a variety of applications. 5: Can I connect different solar panels together? A: Though mixing different solar panels is not recommended, the mismatch can be achievable as long as each panel’s electrical parameters (voltage, current, wattage) are carefully considered. 50W Solar Panel 100W Solar Panel 200W Solar Panel 100W KIT Solar Panel 200W KIT Solar Panel Buying Options Buying Options Buying Options Buying Options Buying Options Customer Reviews 4.5 out of 5 stars 304 4.5 out of 5 stars 304 4.5 out of 5 stars 304 4.5 out of 5 stars 304 4.5 out of 5 stars 304 Price — no data — no data — no data — no data — no data Dimensions (in.) 15.75*28.54*1.18 33.07*26.38*1.18 55.28*27.76*1.38 36.61*23.03*1.18 36.61*23.03*1.18 UV Bracket 27.5inch Solar Panel Bracket 55inch Solar Panel Bracket 2 to 1 parallel connector 15FT Extension Cable Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.6 out of 5 stars 2 4.0 out of 5 stars 3 5.0 out of 5 stars 5 4.5 out of 5 stars 37 4.5 out of 5 stars 37 Price $29.99$29.99 $69.99$69.99 $99.99$99.99 $12.99$12.99 $22.99$22.99 Solar Charge System Accessories Solar Panel UV Brackets Solar Panel 101P Brackets Solar Panel 410P Brackets IP67 Waterproof 15FT 10AWG Extension cable with male/female connectors
